Rear Axle

Technical Specifications:

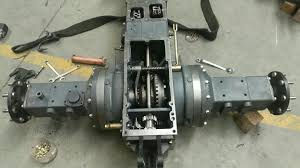

• Should be an actual cut sectional model of rear axle of electric vehicle. The rear axel should be mounted on vertical stand with caster wheel. Axel cut section show the internal working of axel and whole parts assembly fitted on the frame.
• Size : 42” gear Approx
• Cross gear shaft : en45 grade
• Brake diameter : 160/180mm
• Gear ratio : 1:10
• Max speed : ≤30km/h
• Adaptive motor voltage : 48v
• Brake type : drum wheel rim : 4*m12
• Nut type : Close nut
• Bearing type : Sealed
• Middle section : Single piece
• Sealant type : High temperature resistant rubber sealant
• Parts of rear axel assembly coated with attractive color for better understanding. Multi color cut section diagram printed on frame to better understand the internal construction. Good quality painted structure.
• Setup Size : 1800mm x 1200mm x 1200mm
